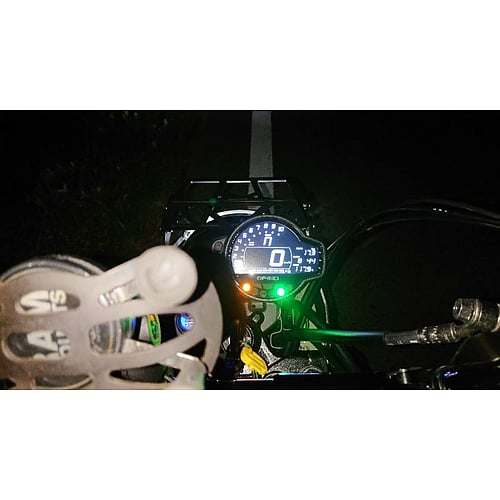

OP Multimeter

Name: OP Multimeter
Brand: OPMID
SKU: 24634144
Price: 29670 JPY
Availability: OutOfStock
Rating: 4.9 (13 reviews)

商品 # M1204

阅读 13 评论

海淘直邮价（不含运费&税费）

1,420.28 RMB (29,670 日元)

+297 Webike点数 (14.21 RMB)

商品需要预订

商品抵达我们海外仓库的时间 : 预计4半月内。?

Delivery date estimate

商品问题咨询

找不到你要的商品?

匹配

HONDA

MONKEY125

(JB02)
CT125

(JA55)

适配车型

商品以下描述是由Google自动翻译。

显示原始

商品详情

**请注意，本商品仅可用于四档版本之Honda Monkey 125 (机号JB02) ，及2020、2021年式之Honda CT125 Hunter Cub (机号JA55) 。**
**五档版本Monkey 125 (机号JB03)、2022年式CT125 (机号JA65)无法使用本商品。**

【订购前注意】
订购前，还请详加确认欲购买的颜色、尺寸等等资讯。
商品多为下订后回复交期，所以可能有商品停产，或需长时间等待商品出货之状况。
订单若因为厂商缺货与暂时无法交货等因素，则不会成立；订单若没有成立则不会收取任何费用。
商品可能发生制造商单方面变更规格、外观设计，导致包装或本体造型与商品页面图片不同之情况，敬请见谅。
若因制造商单方面变更产品设计、规格，导致商品无法发挥订购时预期之功能，还请您与本站客服咨询后续处理。
商品自订购至出货经过多道运送流程，因此可能产生包装在运送过程中变形、破损，但商品本身完好、可正常使用之情况。

【退货注意】
若您需要商品退货的服务，还请您至退货区块进行申请；并请您保持商品外观、用原包装外箱封装完好。
在收到您的退货申请时，我们会尽快派物流业者前去收货。

【正品保证】
正品保证之商品，若有被查获疑似为仿冒品，并经过相关诉讼，最后交由法院判决如实者，将会对购买此商品的顾客进行当初购买价格的10倍赔偿。

[Specification]
・Speedometer: -199km/h(124MPH)
・With speed warning light and maximum speed record
・Corrections can be made when changing F / R sprockets or tire sizes*
・Odometer: -99999km(99999 mile)
・With user-odd function to start from any value
・Trip meter A / B: -9999.9km(9999.9 mile)
・Oil change distance meter: 500-6000km (Setting unit: 500km) (300-3900mile)
・When it becomes 0km or less, it displays minus.
・Clock: 12-hour display
・Running time (running time meter): -99 hours 59 minutes (in 1 minute increments), 100 hours- (in 1 hour increments)
・Hour meter (engine operating hour meter): -99 hours 59 minutes (in 1 minute increments), 100 hours- (in 1 hour increments)
・Engine temperature clock: Minus 10-180 degrees (14-356 degrees Fahrenheit) *2
・With high temperature warning light
・Voltmeter: 8V-18V
・Tachometer: -10000 or -13000rpm
・Display range switching function (10000rpm for stock engine, 13000rpm for modified engine), High RPM record
・Shift indicator
・It lights up in three stages: Green -> Red -> Green & Red (both flashing).Each speed can be set as desired.
・Gear Position*
・Support for changing the reduction ratio when using an aftermarket cross transmission (up to 6 speeds)
・Fuel gauge: 6 ways
・Opening display: Select from 2 types
・Body size: W128mm x H98mm x D52mm
・Stable working voltage: DC10-16V

*Please note the following for vehicles with ABS.
The speed sensor for the meter in the crank case is used for both the rear wheel of the ABS system and the front wheel due to the change of the sprocket: If the difference in rear wheel rotation is outside the allowable range, an error will occur (warning lamp will flash) and ABS will not function.
The speed correction function of the multi-meter is an internal correction of the meter, and therefore, it cannot be used as a countermeasure against the error generated by the ABS device (modulator).
If the sprocket is replaced on a vehicle with ABS, a device that corrects the signal at the vehicle speed sensor (such as OPMID Doctor Speed) is required.

*Displays the measured value of the stock temperature sensor.The displayed value is the same as the value output to the OBD2 tool.
The stock temperature sensor is installed in the passage where the oil that became hot in the cylinder head returns to the crankcase.
Because it is measured at the hottest point, it is always higher than the average temperature of the whole oil or the temperature of the drain bolt at the bottom.
When the vehicle is stopped (idling), the amount of oil circulation will be reduced, and when the vehicle is running at high rpm and low speed, the stock temperature sensor near the combustion area will start to rise quickly.
In addition, the average engine temperature of the CT125 is 15 degrees higher than that of the Monkey 125 due to the fact that the total amount of oil in the CT125 is approx. 20% less and the frictional heat of the centrifugal clutch.
(Reference) Temperature around 20 degrees, stock engine
Monkey 125: 110-115 degrees when driving, 120-125 degrees when stopped
CT125: 125-130 degrees when driving, 135-140 degrees when stopped
Stopped is the value when the vehicle is waiting at a traffic light for a few minutes, and it increases the longer the vehicle is stopped.
As an alternative to using the stock temperature sensor, a readout circuit for a retrofit temperature sensor is also provided.
A common drain bolt type temperature sensor for the Monkey 125 and CT125 will be released in the spring of 2021.

*How the retrofit calculated gear position function works
The basic mechanism is that the meter calculates the reduction ratio based on the ratio of the speed signal and the engine speed signal, and selects the number of gears based on the ratio.
One of the disadvantages of the system is that when the clutch is disengaged or in a semi-clutch position, the relationship between the speed signal and the engine speed signal is not fixed, so the exact gear cannot be determined.
The stock gear position equipped from the beginning on large vehicles has a switch sensor with contact points for each gear on the shift drum, and is not as linear as that.

In the case of the CT125, there are two clutches, the primary centrifugal clutch (mainly for starting) and the secondary multi-disc clutch (for shifting), and therefore, compared with the Monkey 125, the "time when the relationship between the speed signal and the engine speed signal is not fixed" (i.e.the semi-clutching state) tends to increase during running.In particular, it is not possible to calculate the speed at low rpm when the primary centrifugal clutch is disengaged or about to be disengaged.
Since the deceleration ratio is calculated every 0.1 second, it is not real time, but it will show the true reaction speed when you shift up or down in the engine speed range where the primary clutch does not slip.In terms of rpm, it is recommended to keep the rpm above 3000rpm, but not below 2500rpm.

In the case of the Monkey 125, since only a manual clutch is used, the exact gear can be displayed as soon as the clutch lever is released, but if, for example, the bike is running in 2nd gear at full throttle and the clutch is released and the bike coasts (the speed drops slowly, but the engine speed drops at once), the gear ratio in the calculation will change from 3rd gear to 4th gear, even though the bike is actually still in 2nd gear.The gear ratio in the calculation will have changed from the equivalent of 3rd gear to the equivalent of 4th gear, even though the gear ratio actually remains in 2nd gear.
This product is equipped with a function to read the on / off signal of the clutch switch and to fix the display gear while the clutch is being held, as an auxiliary function to reduce the false display as much as possible, and to ease the sense of discomfort.

the others
The opening display at startup can be selected from A and B.In addition, there is a mode for playing with your luck, in which the probability of B is 1/10 against A.
The red indicator for the immobilizer alarm function, which is a standard feature on overseas models such as the Thai model, is equipped in the same way as the stock meter.The rightmost red indicator functions as a speed / high temperature warning light when driving and as an immobilizer indicator when parked.

*Images may contain other products.
*There may be changes in product specifications due to the manufacturer's reasons.
